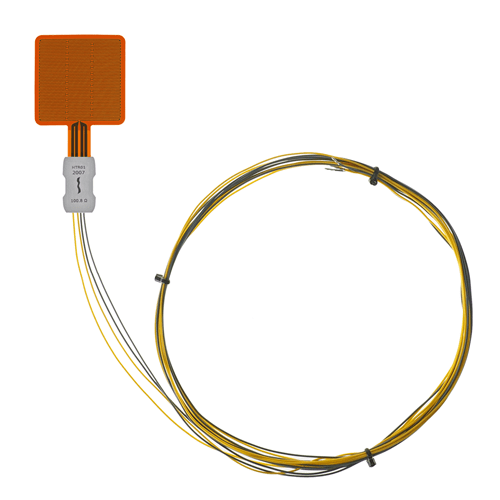

HTR01 Heater for calibration of FHF-type Sensors
The HTR01 is a Heater for calibration and verification of performance of FHF-type sensors, simplifying heat flux sensor calibration. HTR01 is a heater with 4-wire connection with a known surface area and electrical resistance. It is used for calibration and functionality checks of FHF-type heat flux sensors. Users can now easily and objectively check their sensor performance before and after use. See also model FHF04SC heat flux sensor with integrated heater.
HTR01 heater for calibration and verification of performance of FHF-type sensors
Measuring heat flux, users may wish to regularly check their sensor performance. A quick check or if you like even a formal calibration is now possible with HTR01 plus some accessories that most laboratories will have in-house. The HTR01 heater has a well characterised a traceable surface area and electrical resistance.

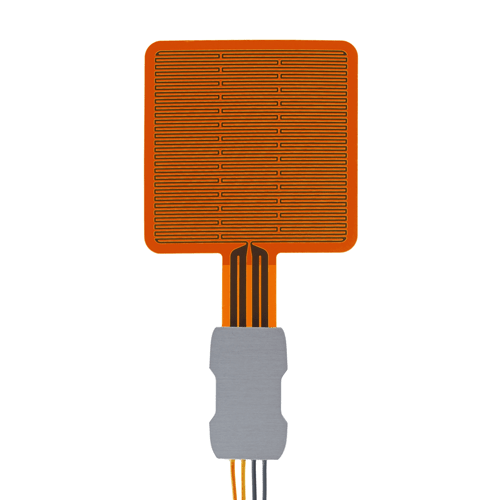

HTR01 is a foil heater. Either it can be used as a general-purpose heater or it can be used in combination with foil heat flux sensors such as FHF04 for test and calibration purposes.
Suggested use
• calibration and verification of performance of FHF-type sensors
- 12 VDC
- 2062 x 10⁻⁶ m²
- 100 Ω (nominal)
- 0.1 x 10⁻³ m
- -40 to +150 °C
- 9 to 15 VDC
- 2 m (2 x 2 wires)
- supplied with a certificate stating surface area in [m²] and heater resistance in [Ω]
- metal heat sink > 1 kg; power supply 12 VDC; 0.2 A; insulation material; contact material such as glycerol or toothpaste
- longer wire length upon request
