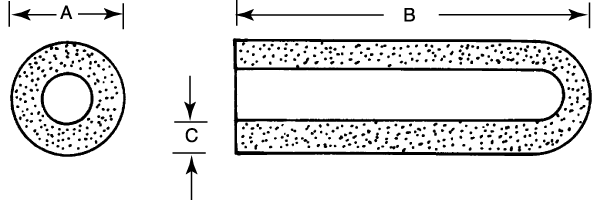

Round Bottom Cup with Straight Wall

The Round Bottom Cup with Straight Wall is available in 5.994, 6.350, 9.398, 9.525, 10.008, 12.700, 19.050, 22.098, 22.225, 38.354, and 39.878 mm diameters.

5.994 mm Diameter

• 14.1.1 (0652X01-B01M1) 1 Bar Standard Flow; 5.994 mm diameter, 64.770 mm length, 0.991 mm wall thickness
  Recommended for general purpose uses that involve pressure differentials under 1 Bar (14.5 psi). Typical bubbling pressure: 20-30 psi. Effective pore size: 1.7 microns. Hydraulic conductivity: 0.000000756 cm/sec. Approximate porosity: 34% by vol. Flow through.
• 14.1.1H (0652X01-B01M3) 1 Bar High Flow; 5.994 mm diameter, 64.770 mm length, 0.991 mm wall thickness
  Recommended for standard pressure differentials under 1 Bar (14.5 psi). Typical bubbling pressure: 28 - 32 psi. Effective pore size: 2.5 microns. Hydraulic conductivity: 0.0000086 cm/sec. Approximate porosity: 45% by vol. Flow through
• 14.1.2H (0652X01-B02M2) 2 Bar High Flow; 5.994 mm diameter, 64.770 mm length, 0.991 mm wall thickness
  Recommended for standard pressure differentials under 2 Bar (29.0 psi). Typical bubbling pressure: 32-42 psi. Effective pore size: 1.3 microns. Hydraulic conductivity: 0.000000693 cm/sec. Approximate porosity: 38% by vol. Flow through.
• 14.2.1 (0652X02-B01M1) 1 Bar Standard Flow: 5.994 (+0.762/-0.000) mm diameter, 80.010 (+1.600/-1.600) mm length, 1.600 (+0.762/-0.000) mm wall thickness
  Recommended for general purpose uses that involve pressure differentials under 1 Bar (14.5 psi). Typical bubbling pressure: 20-30 psi. Effective pore size: 1.7 microns. Hydraulic conductivity: 0.000000756 cm/sec. Approximate porosity: 34% by vol. Flow through.
• 14.2.1H (0652X02-B01M3) 1 Bar High Flow; 5.994 mm diameter, 80.010 mm length, 1.600 mm wall thickness
  Recommended for standard pressure differentials under 1 Bar (14.5 psi). Typical bubbling pressure: 28 - 32 psi. Effective pore size: 2.5 microns. Hydraulic conductivity: 0.0000086 cm/sec. Approximate porosity: 45% by vol. Flow through
• 14.2.2H (0652X02-B02M2) 2 Bar High Flow; 5.994 mm diameter, 64.770 mm length, 1.600 mm wall thickness
  Recommended for standard pressure differentials under 2 Bar (29.0 psi). Typical bubbling pressure: 32-42 psi. Effective pore size: 1.3 microns. Hydraulic conductivity: 0.000000693 cm/sec. Approximate porosity: 38% by vol. Flow through.

6.350 mm diameter

• 14.3.F (0652X03-B0.5M2) 1/2 Bar Standard Flow; 6.350 mm diameter, 28.575 mm length, 1.600 mm wall thickness
  Recommended for low air pressure differentials not exceeding 0.5 Bar (7.25 psi). Typical bubbling pressure: 12-16 psi. Effective pore size: 6.0 microns. Hydraulic conductivity: 0.0000311 cm/sec. Approximate porosity: 50% by vol. Typical flow through for a 1/4-inch plate: 180 ml/hr/cm2 at 14.7 psi.
• 14.3.1 (0652X03-B01M1) 1 Bar Standard Flow; 6.350 (+0.762/-0.000) mm diameter, 28.575 (+1.600/-1.600) mm length, 1.600 (+0.762/-0.000) mm wall thickness
  Recommended for general purpose uses that involve pressure differentials under 1 Bar (14.5 psi). Typical bubbling pressure: 20-30 psi. Effective pore size: 1.7 microns. Hydraulic conductivity: 0.000000756 cm/sec. Approximate porosity: 34% by vol. Flow through.
• 14.3.1H (0652X03-B01M3) 1 Bar High Flow; 6.350 (+0.762/-0.000) mm diameter, 28.575 (+1.600/-1.600) mm length, 1.600 (+0.762/-0.000) mm wall thickness
  Recommended for standard pressure differentials under 1 Bar (14.5 psi). Typical bubbling pressure: 28 - 32 psi. Effective pore size: 2.5 microns. Hydraulic conductivity: 0.0000086 cm/sec. Approximate porosity: 45% by vol. Flow through.
• 14.3.2H (0652X03-B05M1) 5 Bar Standard Flow; 6.350 mm diameter, 28.575 mm length, 1.600 mm wall thickness
  Recommended for specialised applications where the pressure differentials are under 5 Bar (72.5 psi). Typical bubbling pressure: 80 psi. Effective pore size: 0.5 micron. Hydraulic conductivity: 0.000000121 cm/sec. Approximate porosity: 31% by vol. Flow through.

10.008 mm diameter

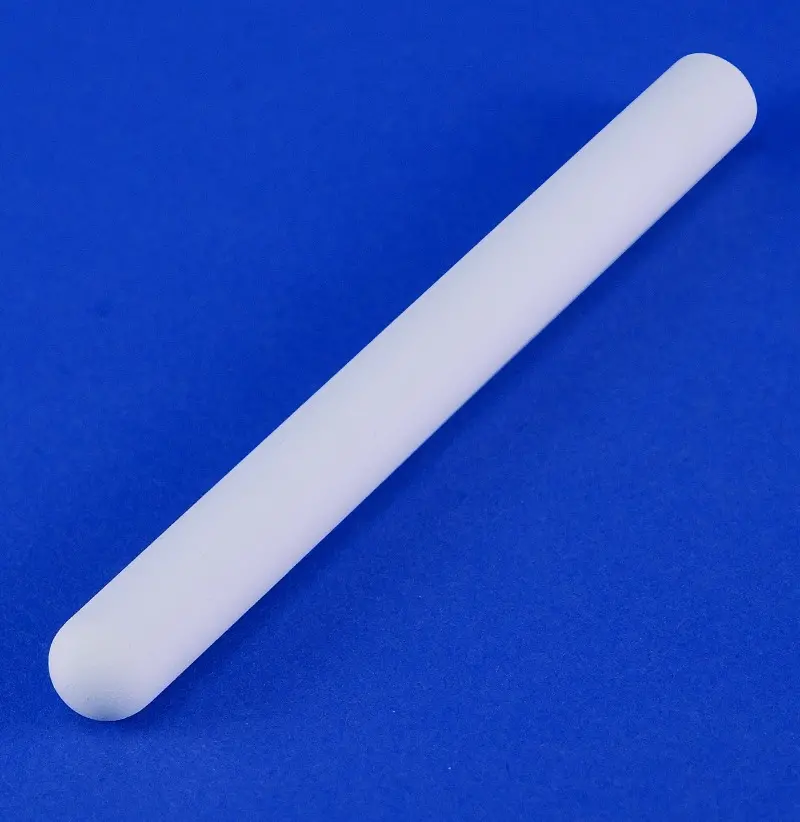

• 14.4.F (0652X04-B0.5M2) 1/2 Bar Standard Flow; 10.008 (+0.762/-0.000) mm diameter, 100.000 (+1.600/-1.600) mm length, 1.600 (+0.762/-0.000) mm wall thickness
  Recommended for low air pressure differentials not exceeding 0.5 Bar (7.25 psi). Typical bubbling pressure: 12-16 psi. Effective pore size: 6.0 microns. Hydraulic conductivity: 0.0000311 cm/sec. Approximate porosity: 50% by vol. Typical flow through for a 1/4-inch plate: 180 ml/hr/cm2 at 14.7 psi.
• 14.4.1 (0652X04-B01M1) 1 Bar Standard Flow; 10.008 (+0.762/-0.000) mm diameter, 100.000 (+1.600/-1.600) mm length, 1.600 (+0.762/-0.000) mm wall thickness
  Recommended for general purpose uses that involve pressure differentials under 1 Bar (14.5 psi). Typical bubbling pressure: 20-30 psi. Effective pore size: 1.7 microns. Hydraulic conductivity: 0.000000756 cm/sec. Approximate porosity: 34% by vol. Flow through
• 14.4.2H (0652X04-B01M3) 1 Bar Standard Flow; 10.008 (+0.762/-0.000) mm diameter, 100.000 (+1.600/-1.600) mm length, 1.600 (+0.762/-0.000) mm wall thickness
  Recommended for standard pressure differentials under 1 Bar (14.5 psi). Typical bubbling pressure: 28 - 32 psi. Effective pore size: 2.5 microns. Hydraulic conductivity: 0.0000086 cm/sec. Approximate porosity: 45% by vol. Flow through

9.525 mm diameter

• 14.7.F (0652X07-B0.5M2) 1/2 Bar Standard; 9.525 mm diameter, 28.448 mm length, 1.600 mm wall thickness
  Recommended for low air pressure differentials not exceeding 0.5 Bar (7.25 psi). Typical bubbling pressure: 12-16 psi. Effective pore size: 6.0 microns. Hydraulic conductivity: 0.0000311 cm/sec. Approximate porosity: 50% by vol. Typical flow through for a 1/4-inch plate: 180 ml/hr/cm2 at 14.7 psi.
• 14.7.1 (0652X07-B01M1) 1 Bar Standard Flow; 9.525 (+0.762/-0.000) mm diameter, 28.575 (+1.600/-1.600) mm length, 1.600 (+0.762/-0.000) mm wall thickness
  Recommended for general purpose uses that involve pressure differentials under 1 Bar (14.5 psi). Typical bubbling pressure: 20-30 psi. Effective pore size: 1.7 microns. Hydraulic conductivity: 0.000000756 cm/sec. Approximate porosity: 34% by vol. Flow through.
• 14.7.1H (0652X07-B01M3) 1 Bar High Flow; 9.525 (+0.762/-0.000)mm diameter, 28.575 (+1.600/-1.600) mm length, 1.600 (+0.762/-0.000) mm wall thickness
  Recommended for standard pressure differentials under 1 Bar (14.5 psi). Typical bubbling pressure: 28 - 32 psi. Effective pore size: 2.5 microns. Hydraulic conductivity: 0.0000086 cm/sec. Approximate porosity: 45% by vol. Flow through.
• 14.7.2 (0652X07-B02M1) 2 Bar Standard Flow; 9.525 (+0.762/-0.000) mm diameter, 28.575 (+1.600/-1.600) mm length, 1.600 (+0.762/-0.000) mm wall thickness
  Recommended for specialised applications where the pressure differentials are under 3 Bar (29.0 psi). Typical bubbling pressure: 38-45 psi. Effective pore size: 1.1 microns. Hydraulic conductivity: 0.00000063 cm/sec. Approximate porosity: 32% vol. Flow through.
• 14.7.2H (0652X07-B02M2) 2 Bar High Flow; 9.525 mm diameter, 28.448 mm length, 1.600 mm wall thickness
  Recommended for standard pressure differentials under 2 Bar (29.0 psi). Typical bubbling pressure: 32-42 psi. Effective pore size: 1.3 microns. Hydraulic conductivity: 0.000000693 cm/sec. Approximate porosity: 38% by vol. Flow through.
• 14.7.3 (0652X07-B03M1) 3 Bar Standard Flow; 9.525 (+0.762/-0.000) mm diameter, 28.575 (+1.600/-1.600) mm length, 1.600 (+0.762/-0.000) mm wall thickness
  Recommended for specialised applications where the pressure differentials are under 3 Bars (43.5 psi). Typical bubbling pressure: 46 - 70 psi. Effective pore size: 0.7 microns. Hydraulic conductivity: 0.00000025 cm/sec. Approximate porosity: 34% vol. Flow through.
• 14.7.5 (0652X07-B05M1) 5 Bar Standard Flow; 9.525 (+0.762/-0.000) mm diameter, 28.575 (+1.600/-1.600) mm length, 1.600 (+0.762/-0.000) mm wall thickness
  Recommended for specialised applications where the pressure differentials are under 5 Bar (72.5 psi). Typical bubbling pressure: 80 psi. Effective pore size: 0.5 micron. Hydraulic conductivity: 0.000000121 cm/sec. Approximate porosity: 31% by vol. Flow through.

22.225 mm diameter

• 14.8.1 (0652X08-B01M1) 1 Bar Standard Flow; 22.225 (+0.762/-0.000) mm diameter, 79.375 (+2.286/-1.600) mm length, 3.962 (+0.762/-0.000) mm wall thickness
  Recommended for general purpose uses that involve pressure differentials under 1 Bar (14.5 psi). Typical bubbling pressure: 20-30 psi. Effective pore size: 1.7 microns. Hydraulic conductivity: 0.000000756 cm/sec. Approximate porosity: 34% by vol.
• 14.8.1H (0652X08-B01M3) 1 Bar High Flow; 22.225 mm diameter, 79.248 mm length, 3.962 mm wall thickness
  Recommended for standard pressure differentials under 1 Bar (14.5 psi). Typical bubbling pressure: 28 - 32 psi. Effective pore size: 2.5 microns. Hydraulic conductivity: 0.0000086 cm/sec. Approximate porosity: 45% by vol.
• 14.9.F (0652X09-B0.5M2) 1 Bar High Flow; 22.225 (+0.762/-0.000) mm diameter, 79.375 (+2.286/-1.600) mm length, 6.350 (+0.762/-0.000) mm wall thickness
  Recommended for standard pressure differentials under 0.5 Bar (14.5 psi). Typical bubbling pressure: 28 - 32 psi. Effective pore size: 2.5 microns. Hydraulic conductivity: 0.0000086 cm/sec. Approximate porosity: 45% by vol.
• 14.9.1H (0652X09-B01M3) 1 Bar High Flow; 22.225 (+0.762/-0.000) mm diameter, 88.900 (+2.286/-1.600) mm length, 6.350 (+0.762/-0.000) mm wall thickness
  Recommended for standard pressure differentials under 1 Bar (14.5 psi). Typical bubbling pressure: 28 - 32 psi. Effective pore size: 2.5 microns. Hydraulic conductivity: 0.0000086 cm/sec. Approximate porosity: 45% by vol. Flow through
• 14.9.2 (0652X09-B02M2) 2 Bar High Flow; 22.225 (+0.762/-0.000) mm diameter, 88.900 (+2.286/-1.600) mm length, 6.350 (+0.762/-0.000) mm wall thickness
  Recommended for standard pressure differentials under 2 Bar (14.5 psi). Typical bubbling pressure: 28 - 32 psi. Effective pore size: 2.5 microns. Hydraulic conductivity: 0.0000086 cm/sec. Approximate porosity: 45% by vol.
• 14.10.1H (0652X10-B01M3) 1 Bar High Flow; 22.225 (+0.762/-0.000) mm diameter, 88.900 (+2.286/-1.600) mm length, 3.175 (+0.762/-0.000) mm wall thickness
  Recommended for standard pressure differentials under 1 Bar (14.5 psi). Typical bubbling pressure: 28 - 32 psi. Effective pore size: 2.5 microns. Hydraulic conductivity: 0.0000086 cm/sec. Approximate porosity: 45% by vol.

12.700 mm diameter

• 14.11.1H (0652X11-B01M3) 1 Bar High Flow; 12.700 (+0.762/-0.000) mm diameter, 63.500 (+2.286/-1.600) mm length, 3.175 (+0.762/-0.000) mm wall thickness

19.050 mm diameter

• 14.16.1 (0652X16-B01M1) 1 Bar Standard Flow; 19.050 (+0.762/-0.000) mm diameter, 66.675 (+2.286/-1.600) mm length, 3.962 (+0.762/-0.000) mm wall thickness
• 14.16.1H (0652X16-B01M3) 1 Bar High Flow; 19.050 (+0.762/-0.000) mm diameter, 66.675 (+2.286/-1.600) mm length, 3.962 (+0.762/-0.000) wall thickness

38.354 mm diameter

• 14.18.F (0652X18-B0.5M2) 1/2 Bar Standard Flow; 38.354 (+1.600/-0.000 mm diameter, 190.500 (+2.286/-1.600) mm length, 5.080 (+1.600/-0.000) wall thickness

39.878 mm diameter

• 14.18.1H (0652X18-B01M3): 1 Bar High Flow; 39.878 (+0.762/-0.000) mm diameter, 190.500 (+2.286/-1.600) mm length, 5.080 (+1.600/-0.000)mm wall thickness
